| الاسم التجاري: | Future |
| الـ MOQ: | 100000 مجموعة |
| السعر: | قابل للتفاوض |
| تفاصيل التعبئة: | كرتون |
| شروط الدفع: | L/C,D/A,D/P,T/T,ويسترن يونيون,MoneyGram |
| Attribute | Value |
|---|---|

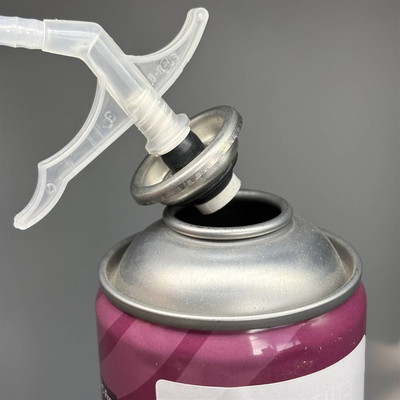

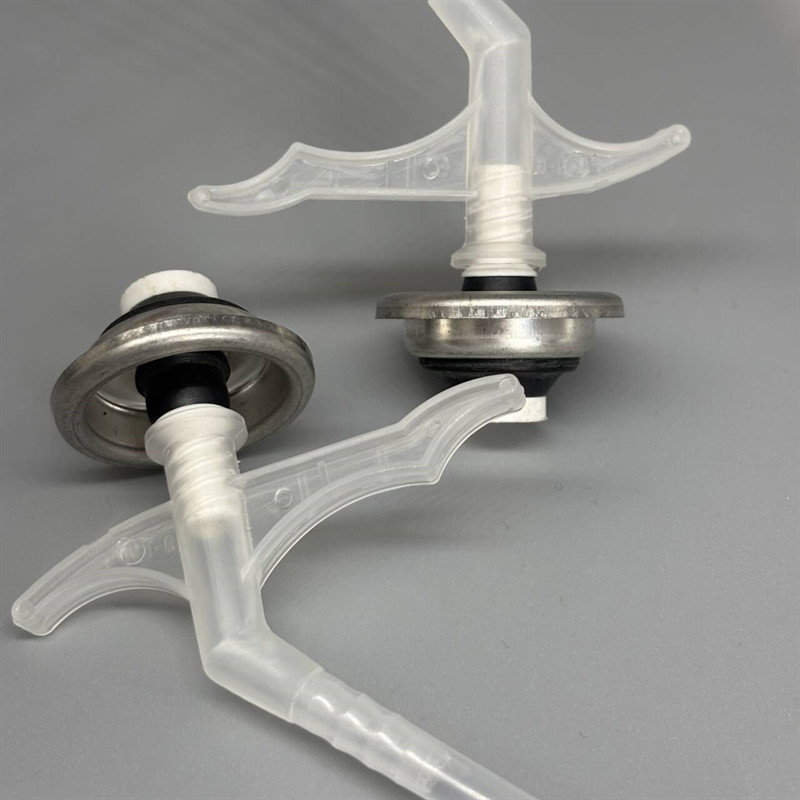

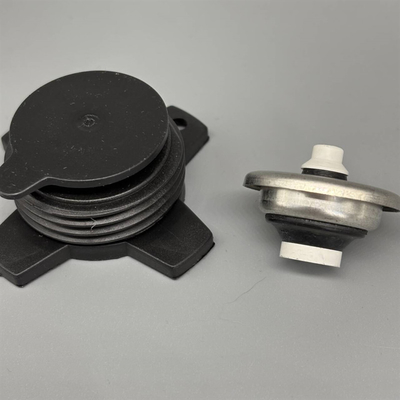

| Product Name | PU foam spray valve |
| Material | Tinplate |
| Type | Long Stem Pu Valve |
| Application | Building and Construction |
| Feature | Eco-friendly, Durable, Flexible |
| Component | Material/Details | Options |
|---|---|---|

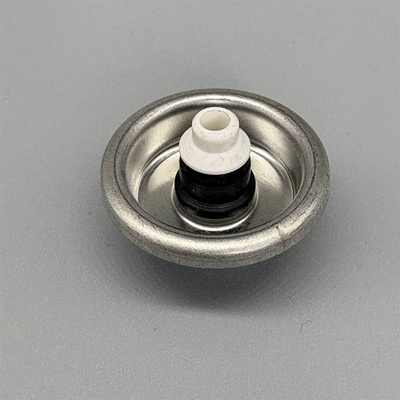

| Mounting cup | Tinplate | With or without dimples, plain or lacquer (clear or gold) |
| Outer Gasket | Buna | |
| Inner Gasket | Buna, Neoprene, Butyl | |
| Stem | Nylon | |
| Orifice | 1x0.46mm, 1x0.51mm, 2x0.51mm, 2x0.61mm, 4x0.61mm | |
| Spring | Stainless steel | |
| Housing | Nylon | Φ4.3mm (Spray Area 14.52mm²) |
| VPH Spray Area | 6.7mm² | |
| Steel Ball | Φ3.5mm |
|
